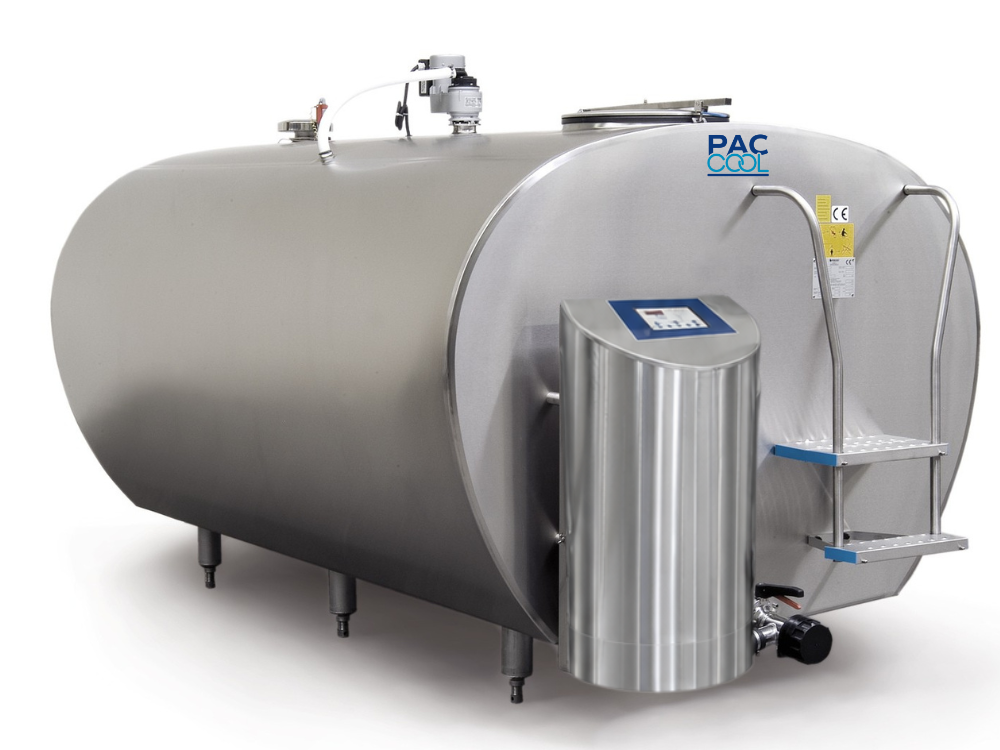

Milk Cooling Tank (REM 5,000 – 15,000 Litres)
REM/DX-DIRECT EXPANSION (DX) &
REM/DIB-GLYCOL COOLING (DIB)
Characteristics
Horizontal tank with laser welded, highly efficient evaporator cooling plates.
Constructed from stainless steel 18/10-AISI 304.
Internal chassis with solid leg construction and adjustable screw-out legs.
Flat manhole with swivelling cover and rubber seal for hygiene.
Detachable air vent.
Tank outlet 80mm butterfly valve with 50mm BSM tanker driver connections.
Stainless steel access ladder for dipstick inspection under manhole.
Tank conforms to EN 13732 Standard – KEYMARK label.
Tank Control & Display
All electrical tank components (1-Phase) 240 Volts – 50Hz
Tank fitted with either Pac Cool “PCV3” or “Icontrol” touchscreen display.
The “Icontrol” not only displays the milk temperature, this advanced “Icontrol” is the full interface control unit for both farmer & tanker driver. Incorporating all cooling and washing functions in one easy to use touch screen display.
Deep cooling possible to 1.9 degrees
Full automatic logging of cooling, agitation, cleaning and error files for both the farmer and service mechanic
-
Thanks to the free evaporation and proper mixing of the milk, the heat exchange between cooling and milk is optimal.
Tank designed for high milk entry temperatures (above 22 degrees) including the Australian milk entry standard of 22 degrees
Number of agitators depends on the volume of the tank capacity.
All Refrigeration pipes are pre-mounted ready to connect.
-
Automatic dosage pumps for all chemicals, acid, detergent & sanitizer dispensing
High Pressure “Pac Cool - Rotojet” spray balls mounted in agitator blade(s)
Vertically mounted stainless steel wash pump, free draining
Powerful 1.5Kw wash pump ensures optimal cleaning inside vessel
